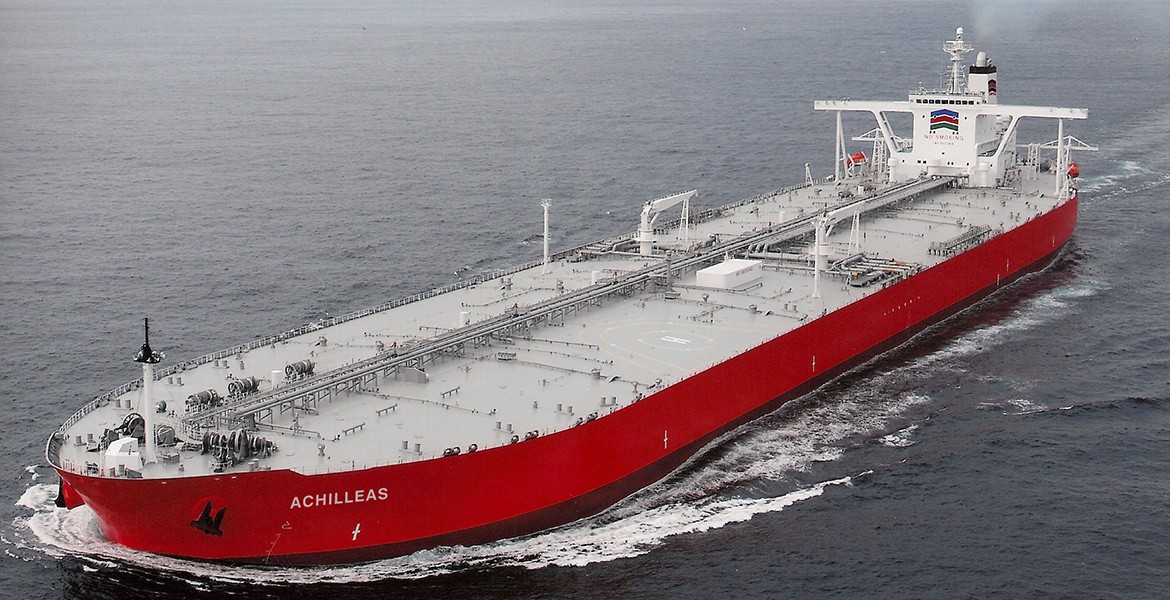

ACHILLEAS

BUILT: 2010
CLASS: ABS
FLAG: LIBERIA LIBERIA
BUILDER: Ariake Shipyard, Universal Shipbuilding Corporation, Japan
VESSEL PARTICULARS
Type of vessel:
CRUDE OIL TANKER, ABS A1 E, AMS ACCU SH, SHCM ESP UWILD AND VEC
Summer deadweight:
297,863 MT
Summer draft:
21.523 m
Summer freeboard:
8.221 m
GRT / NRT:
156,915/ 98,886
LOA:
330 m
Beam:
60.00 m
Depth:
29.7 m
Keel to mast:
65.53 m
CARGO ARRANGEMENTS
Cargo / slop tanks:
15 / 2
Cargo capacity (98% ex slop tanks):
340,000.00 m³
Slop tank capacity (98%):
8,704 m³
Cargo tank coating:
Epoxy
Heating arrangement:
Aluminized - brass heating coils
SBT / IGS / COW:
Yes
Number of manifolds on each side:
3 x 400 mm
Distance bow to mid-point manifold:
162.08 m
Distance main deck to center manifold:
2,100 mm
Distance manifolds to ship's rail:
4,600 mm
Natural segregation with double valves:
3
Cranes / SWL:
2 x 20 T
CARGO PUMPS
Cargo pump type:
Centrifugal
Number of cargo pumps:
3
Capacity of cargo pumps:
3 x 5,500 m³ / h
PROPULSION
Main engine:
MAN B&W 7S80MC 25,090 kW @ 78.6 RPM
Propeller type:
Fixed pitch
Generators:
900 RPM
Bow thruster:
N/A
